FieldTalk™ Modbus® Master Protocol Library C++ Editions

---

MbusRtuOverTcpMasterProtocol Class Reference
[Encapsulated Modbus RTU Protocol]

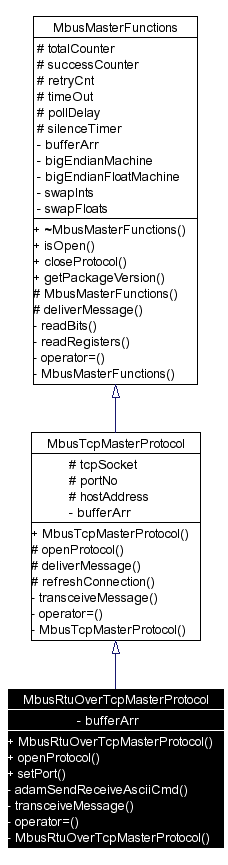

Inheritance diagram for MbusRtuOverTcpMasterProtocol:

Collaboration diagram for MbusRtuOverTcpMasterProtocol:

List of all members.

---

Detailed Description

Encapsulated Modbus RTU Master Protocol class.

This class realises the Encapsulated Modbus RTU master protocol. This protocol is also known as RTU over TCP or RTU/IP and used for example by ISaGraf® Soft-PLCs. This class provides functions to establish and to close a TCP/IP connection to the slave as well as data and control functions which can be used after a connection to a slave device has been established successfully. The data and control functions are organized different conformance classes. For a more detailed description of the data and control functions see section Data and Control Functions for all Protocol Flavours.

It is also possible to instantiate multiple instances of this class for establishing multiple connections to either the same or different hosts.

Version:

1.0

See also:

mbusmaster

MbusMasterFunctions

TCP/IP Connection Management Functions
virtual void	closeProtocol ()
	Closes a TCP/IP connection to a slave and releases any system resources associated with the connection.
virtual int	isOpen ()
	Returns whether currently connected or not.
unsigned short	getPort ()
	Returns the TCP port number used by the protocol.
Class 0 Modbus Functions
int	writeMultipleRegisters (int slaveAddr, int startRef, const short regArr[], int refCnt)
	Modbus function 16 (10 hex), Preset Multiple Registers/Write Multiple Registers.
int	writeMultipleLongInts (int slaveAddr, int startRef, const long int32Arr[], int refCnt)
	Modbus function 16 (10 hex) for 32-bit long int data types, Preset Multiple Registers/Write Multiple Registers with long int data.
int	writeMultipleMod10000 (int slaveAddr, int startRef, const long int32Arr[], int refCnt)
	Modbus function 16 (10 hex) for 32-bit modulo-10000 long int data types, Preset Multiple Registers/Write Multiple Registers with modulo-10000 long int data.
int	writeMultipleFloats (int slaveAddr, int startRef, const float float32Arr[], int refCnt)
	Modbus function 16 (10 hex) for 32-bit float data types, Preset Multiple Registers/Write Multiple Registers with float data.
int	readMultipleRegisters (int slaveAddr, int startRef, short regArr[], int refCnt)
	Modbus function 3 (03 hex), Read Holding Registers/Read Multiple Registers.
int	readMultipleLongInts (int slaveAddr, int startRef, long int32Arr[], int refCnt)
	Modbus function 3 (03 hex) for 32-bit long int data types, Read Holding Registers/Read Multiple Registers as long int data.
int	readMultipleMod10000 (int slaveAddr, int startRef, long int32Arr[], int refCnt)
	Modbus function 3 (03 hex) for 32-bit modulo-10000 long int data types, Read Holding Registers/Read Multiple Registers as modulo-10000 long int data.
int	readMultipleFloats (int slaveAddr, int startRef, float float32Arr[], int refCnt)
	Modbus function 3 (03 hex) for 32-bit float data types, Read Holding Registers/Read Multiple Registers as float data.
Class 1 Modbus Functions
int	readCoils (int slaveAddr, int startRef, int bitArr[], int refCnt)
	Modbus function 1 (01 hex), Read Coil Status/Read Coils.
int	readInputDiscretes (int slaveAddr, int startRef, int bitArr[], int refCnt)
	Modbus function 2 (02 hex), Read Inputs Status/Read Input Discretes.
int	readInputRegisters (int slaveAddr, int startRef, short regArr[], int refCnt)
	Modbus function 4 (04 hex), Read Input Registers.
int	readInputLongInts (int slaveAddr, int startRef, long int32Arr[], int refCnt)
	Modbus function 4 (04 hex) for 32-bit long int data types, Read Input Registers as long int data.
int	readInputMod10000 (int slaveAddr, int startRef, long int32Arr[], int refCnt)
	Modbus function 4 (04 hex) for 32-bit modulo-10000 long int data types, Read Input Registers as modulo-10000 long int data.
int	readInputFloats (int slaveAddr, int startRef, float float32Arr[], int refCnt)
	Modbus function 4 (04 hex) for 32-bit float data types, Read Input Registers as float data.
int	writeCoil (int slaveAddr, int bitAddr, int bitVal)
	Modbus function 5 (05 hex), Force Single Coil/Write Coil.
int	writeSingleRegister (int slaveAddr, int regAddr, short regVal)
	Modbus function 6 (06 hex), Preset Single Register/Write Single Register.
int	readExceptionStatus (int slaveAddr, unsigned char *statusByte)
	Modbus function 7 (07 hex), Read Exception Status.
Class 2 Modbus Functions
int	forceMultipleCoils (int slaveAddr, int startRef, const int bitArr[], int refCnt)
	Modbus function 15 (0F hex), Force Multiple Coils.
int	maskWriteRegister (int slaveAddr, int regAddr, unsigned short andMask, unsigned short orMask)
	Modbus function 22 (16 hex), Mask Write Register.
int	readWriteRegisters (int slaveAddr, int readRef, short readArr[], int readCnt, int writeRef, const short writeArr[], int writeCnt)
	Modbus function 23 (17 hex), Read/Write Registers.
Protocol Configuration
int	setTimeout (int timeOut)
	Configures time-out.
int	getTimeout ()
	Returns the time-out value.
int	setPollDelay (int pollDelay)
	Configures poll delay.
int	getPollDelay ()
	Returns the poll delay time.
int	setRetryCnt (int retryCnt)
	Configures the automatic retry setting.
int	getRetryCnt ()
	Returns the automatic retry count.
Transmission Statistic Functions
unsigned long	getTotalCounter ()
	Returns how often a message transfer has been executed.
void	resetTotalCounter ()
	Resets total message transfer counter.
unsigned long	getSuccessCounter ()
	Returns how often a message transfer was successful.
void	resetSuccessCounter ()
	Resets successful message transfer counter.
Word Order Configuration
void	configureBigEndianInts ()
	Configures int data type functions to do a word swap.
void	configureSwappedFloats ()
	Configures float data type functions to do a word swap.
void	configureLittleEndianInts ()
	Configures int data type functions not to do a word swap.
void	configureIeeeFloats ()
	Configures float data type functions not to do a word swap.
Public Member Functions
	MbusRtuOverTcpMasterProtocol ()
	Constructs a MbusRtuOverTcpMasterProtocol object and initialises its data.
int	openProtocol (const char *const hostName)
	Connects to a Encapsulated Modbus RTU slave.
int	setPort (unsigned short portNo)
	Sets the TCP port number to be used by the protocol.
Static Public Member Functions
char *	getPackageVersion ()
	Returns the package version number.

---

Member Function Documentation

int openProtocol (  const char *const  hostName  )

Connects to a Encapsulated Modbus RTU slave. This function establishes a logical network connection between master and slave. After a connection has been established data and control functions can be used. A TCP/IP connection should be closed if it is no longer needed. Note: The default time-out for the connection is 1000 ms. The default TCP port number is 1100. Parameters: hostName  String with IP address or host name Returns: FTALK_SUCCESS on success or error code. See Protocol Errors and Exceptions for a list of error codes. Reimplemented from MbusTcpMasterProtocol.

int setPort (  unsigned short  portNo  )

Sets the TCP port number to be used by the protocol. Remarks: Usually the port number remains unchanged and defaults to 1100. In this case no call to this function is necessary. However if the port number has to be different from 1100 this function must be called before opening the connection with openProtocol(). Parameters: portNo  Port number to be used when opening the connection Return values: FTALK_SUCCESS  Success FTALK_ILLEGAL_STATE_ERROR  Protocol already open Reimplemented from MbusTcpMasterProtocol.

int isOpen (   )  [virtual, inherited]

Returns whether currently connected or not. Return values: true  = connected false  = not connected Reimplemented from MbusMasterFunctions.

unsigned short getPort (   )  [inherited]

Returns the TCP port number used by the protocol. Returns: Port number used by the protocol

---
