FieldTalk^™ Modbus^® Slave Library
C++ Editions

MbusRtuSlaveProtocol Class Reference
[Serial Protocols]

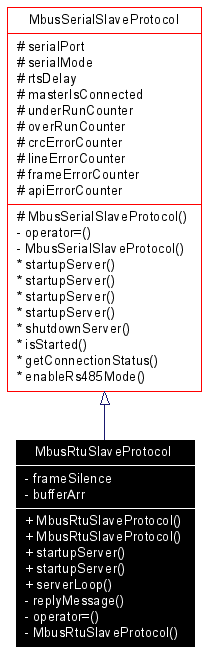

Inheritance diagram for MbusRtuSlaveProtocol:

Collaboration diagram for MbusRtuSlaveProtocol:

List of all members.

Detailed Description

Modbus RTU Slave Protocol class.

This class realises the Modbus RTU slave protocol. It provides functions to start-up and to execute the server engine which includes opening and closing of the serial port. Upon receipt of a valid master query the server engine calls Data Provider methods to exchange data with the user application. For a more detailed description which Modbus data and control functions have been implemented in the server engine see section Server Functions common to all Protocol Flavours.

It is possible to instantiate multiple instances for establishing multiple connections on different serial ports (They should be executed in separate threads).

See also:: Server Functions common to all Protocol Flavours, MbusSlaveServer


Serial Server Management Functions
int	startupServer (const char *const portName, long baudRate)
	Puts the Modbus RTU server into operation and opens the associated serial port with default port parameters.
int	startupServer (int slaveAddr, const char *const portName, long baudRate)
	Puts the Modbus RTU server into operation and opens the associated serial port with default port parameters.
void	shutdownServer ()
	Shuts down the Modbus server.
int	isStarted ()
	Returns if server has been started up.
int	getConnectionStatus ()
	Checks if a Modbus master is polling periodically.
virtual int	enableRs485Mode (int rtsDelay)
	Enables RS485 mode.
Server Management Functions
int	addDataTable (int slaveAddr, MbusDataTableInterface *dataTablePtr)
	Associates a protocol object with a Data Provider and a slave address.
Protocol Configuration
long	setTimeout (long timeOut)
	Configures master transmit time-out supervision.
long	getTimeout ()
	Returns the master time-out supervision value.
Transmission Statistic Functions
unsigned long	getTotalCounter ()
	Returns how often a message transfer has been executed.
void	resetTotalCounter ()
	Resets total message transfer counter.
unsigned long	getSuccessCounter ()
	Returns how often a message transfer was successful.
void	resetSuccessCounter ()
	Resets successful message transfer counter.
Utility Functions
static char *	getPackageVersion ()
	Returns the package version number.
Public Types
enum	{ SER_DATABITS_7 = SerialPort::SER_DATABITS_7, SER_DATABITS_8 = SerialPort::SER_DATABITS_8 }
enum	{ SER_STOPBITS_1 = SerialPort::SER_STOPBITS_1, SER_STOPBITS_2 = SerialPort::SER_STOPBITS_2 }
enum	{ SER_PARITY_NONE = SerialPort::SER_PARITY_NONE, SER_PARITY_EVEN = SerialPort::SER_PARITY_EVEN, SER_PARITY_ODD = SerialPort::SER_PARITY_ODD }
Public Member Functions
	MbusRtuSlaveProtocol ()
	Constructs a MbusRtuSlaveProtocol object.
	MbusRtuSlaveProtocol (MbusDataTableInterface *dataTablePtr)
	Constructs a MbusRtuSlaveProtocol object and associates it with a Data Provider.
int	startupServer (const char *const portName, long baudRate, int dataBits, int stopBits, int parity)
	Puts the Modbus RTU server into operation and opens the associated serial port with specific port parameters.
int	startupServer (int slaveAddr, const char *const portName, long baudRate, int dataBits, int stopBits, int parity)
	Puts the Modbus RTU server into operation and opens the associated serial port with specific port parameters.
int	serverLoop ()
	Modbus RTU slave server loop.
Protected Types
enum	{ SER_RS232, SER_RS485 }

Member Enumeration Documentation

anonymous enum [inherited]

Enumeration values:

SER_DATABITS_7	7 data bits
SER_DATABITS_8	8 data bits

anonymous enum [inherited]

Enumeration values:

SER_STOPBITS_1	1 stop bit
SER_STOPBITS_2	2 stop bits

anonymous enum [inherited]

Enumeration values:

SER_PARITY_NONE	No parity.
SER_PARITY_EVEN	Even parity.
SER_PARITY_ODD	Odd parity.

anonymous enum [protected, inherited]

Enumeration values:

SER_RS232	RS232 mode w/o RTS/CTS handshake.
SER_RS485	RS485 mode: RTS enables/disables transmitter.

Constructor & Destructor Documentation

MbusRtuSlaveProtocol

(

)

Constructs a MbusRtuSlaveProtocol object.

The association with a Data Provider is done after construction using the addDataTable method.

MbusRtuSlaveProtocol

(

MbusDataTableInterface *

dataTablePtr

)

Constructs a MbusRtuSlaveProtocol object and associates it with a Data Provider.

Function is kept for compatibility with previous API versions, do not use for new implementations.

Parameters:

dataTablePtr

Modbus data table pointer. Must point to a Data Provider object derived from the MbusDataTableInterface class. The Data Provider is the interface between your application data and the Modbus network.

Deprecated:: This function is deprecated. The preferred way of assigning a dataTable is using the default constructor and configuring data table and slave address using addDataTable method.

Member Function Documentation

int startupServer	(	const char *const	portName,
		long	baudRate,
		int	dataBits,
		int	stopBits,
		int	parity
	)	`[virtual]`

Puts the Modbus RTU server into operation and opens the associated serial port with specific port parameters.

This function opens the serial port and initialises the server engine.

Parameters:

	portName	Serial port identifier (e.g. "COM1", "/dev/ser1" or "/dev/ttyS0")
	baudRate	The port baudRate in bps (typically 1200 - 9600).
	dataBits	Must be SER_DATABITS_8 for RTU
	stopBits	SER_STOPBITS_1: 1 stop bit, SER_STOPBITS_2: 2 stop bits
	parity	SER_PARITY_NONE: no parity, SER_PARITY_ODD: odd parity, SER_PARITY_EVEN: even parity

Returns:: FTALK_SUCCESS on success or error code. See Protocol Errors and Exceptions for a list of error codes.

Reimplemented from MbusSerialSlaveProtocol.

int startupServer	(	int	slaveAddr,
		const char *const	portName,
		long	baudRate,
		int	dataBits,
		int	stopBits,
		int	parity
	)	`[virtual]`

Puts the Modbus RTU server into operation and opens the associated serial port with specific port parameters.

This function opens the serial port and initialises the server engine.

Function is kept for compatibility with previous API versions, do not use for new implementations.

Parameters:

	slaveAddr	Modbus slave address for server to listen on (1-255)
	portName	Serial port identifier (e.g. "COM1", "/dev/ser1" or "/dev/ttyS0")
	baudRate	The port baudRate in bps (typically 1200 - 9600).
	dataBits	Must be SER_DATABITS_8 for RTU
	stopBits	SER_STOPBITS_1: 1 stop bit, SER_STOPBITS_2: 2 stop bits
	parity	SER_PARITY_NONE: no parity, SER_PARITY_ODD: odd parity, SER_PARITY_EVEN: even parity

Returns:: FTALK_SUCCESS on success or error code. See Protocol Errors and Exceptions for a list of error codes.

Deprecated:: This function is deprecated. The preferred way of assigning a slave address is using the default constructor and configuring data table and slave address using addDataTable method.

Reimplemented from MbusSerialSlaveProtocol.

int serverLoop ( ) [virtual]

Modbus RTU slave server loop.

This server loop must be called continuously. It must not be blocked. The server has to be started before calling the serverLoop() method.

Returns:: FTALK_SUCCESS on success or error code. See Protocol Errors and Exceptions for a list of error codes.

Implements MbusSlaveServer.

int startupServer	(	const char *const	portName,
		long	baudRate
	)	`[inherited]`

Puts the Modbus RTU server into operation and opens the associated serial port with default port parameters.

This function opens the serial port with 8 databits, 1 stopbit and even parity and initialises the server engine.

Parameters:

	portName	Serial port identifier (e.g. "COM1", "/dev/ser1" or "/dev/ttyS0")
	baudRate	The port baudRate in bps (typically 1200 - 9600).

Returns:: FTALK_SUCCESS on success or error code. See Protocol Errors and Exceptions for a list of error codes.

int startupServer	(	int	slaveAddr,
		const char *const	portName,
		long	baudRate
	)	`[inherited]`

Puts the Modbus RTU server into operation and opens the associated serial port with default port parameters.

This function opens the serial port with 8 databits, 1 stopbit and even parity and initialises the server engine.

Function is kept for compatibility with previous API versions, do not use for new implementations.

Parameters:

	slaveAddr	Modbus slave address for server to listen on (1-255)
	portName	Serial port identifier (e.g. "COM1", "/dev/ser1" or "/dev/ttyS0")
	baudRate	The port baudRate in bps (typically 1200 - 9600).

Returns:: FTALK_SUCCESS on success or error code. See Protocol Errors and Exceptions for a list of error codes.

Deprecated:: This function is deprecated. The preferred way of assigning a slave address is using the default constructor and configuring data table and slave address using addDataTable method.

void shutdownServer ( ) [virtual, inherited]

Shuts down the Modbus server.

This function also closes the serial port.

Reimplemented from MbusSlaveServer.

int isStarted ( ) [virtual, inherited]

Returns if server has been started up.

Return values:

	true	= started
	false	= shutdown

Implements MbusSlaveServer.

int getConnectionStatus ( ) [virtual, inherited]

Checks if a Modbus master is polling periodically.

Return values:

	true	= A master is polling at a frequency higher than the master transmit time-out value
	false	= No master is polling within the time-out period

Note:: The master transmit time-out value must be set > 0 in order for this function to work.

Implements MbusSlaveServer.

int enableRs485Mode ( int rtsDelay ) [virtual, inherited]

Enables RS485 mode.

In RS485 mode the RTS signal can be used to enable and disable the transmitter of a RS232/RS485 converter. The RTS signal is asserted before sending data. It is cleared after the transmit buffer has been emptied and in addition the specified delay time has elapsed. The delay time is necessary because even the transmit buffer is already empty, the UART's FIFO will still contain unsent characters.

Warning:: The use of RTS controlled RS232/RS485 converters should be avoided if possible. It is difficult to determine the exact time when to switch off the transmitter with non real-time operating systems like Windows and Linux. If it is switched off to early characters might still sit in the FIFO or the transmit register of the UART and these characters will be lost. Hence the slave will not recognize the message. On the other hand if it is switched off too late then the slave's message is corrupted and the master will not recognize the message.

Remarks:: The delay value is indicative only and not guaranteed to be maintained. How precise it is followed depends on the operating system used, it's scheduling priority and it's system timer resolution.

Note:: A protocol must be closed in order to configure it.

Parameters:

rtsDelay

Delay time in ms (Range: 0 - 100000) which applies after the transmit buffer is empty. 0 disables this mode.

Return values:

	FTALK_SUCCESS	Success
	FTALK_ILLEGAL_ARGUMENT_ERROR	Argument out of range
	FTALK_ILLEGAL_STATE_ERROR	Protocol is already open
